HWASHI Automatic Inner Ring Welding Machine For Fan Guard / Bird Cage

Name: HWASHI Automatic Inner Ring Welding Machine For Fan Guard Bird Cage
Brand: Hwashi
Price: 1 USD

Quality HWASHI Automatic Inner Ring Welding Machine For Fan Guard / Bird Cage for sale

Brand Name : Hwashi

Certification : CCC,CE,ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

After-sales Service Provided : Engineers available to service machinery overseas

Name : HWASHI Automatic inner Ring Welding Machine for Fan Guard / Bird Cage

Size : 1500 x 1000 x 1350mm

Weight : 400kg

Condition : New

Contact Now

HWASHI Automatic lnner Ring Welding Machine for Fan Guard / Bird Cage

After the inner-ring is welded and formed by hydraulic press, put them into the mould on this outer ring welding machine, distribute those 120 wires evenly, start the machine and the outer ring can be welded. Different size of guard needs different welding mould. There are two mould holders. During one is welding, another can be prepared.

HWASHI Automatic Inner Ring Welding Machine For Fan Guard / Bird Cage

Code	XW-WP-40K
Suitable wire diameter for middle ring	3-4mm
Rated welding power	40KVA
Size of guard	8”-20”
Productivity	1000-1500 pieces
Air consumption	l 0.4M3/min

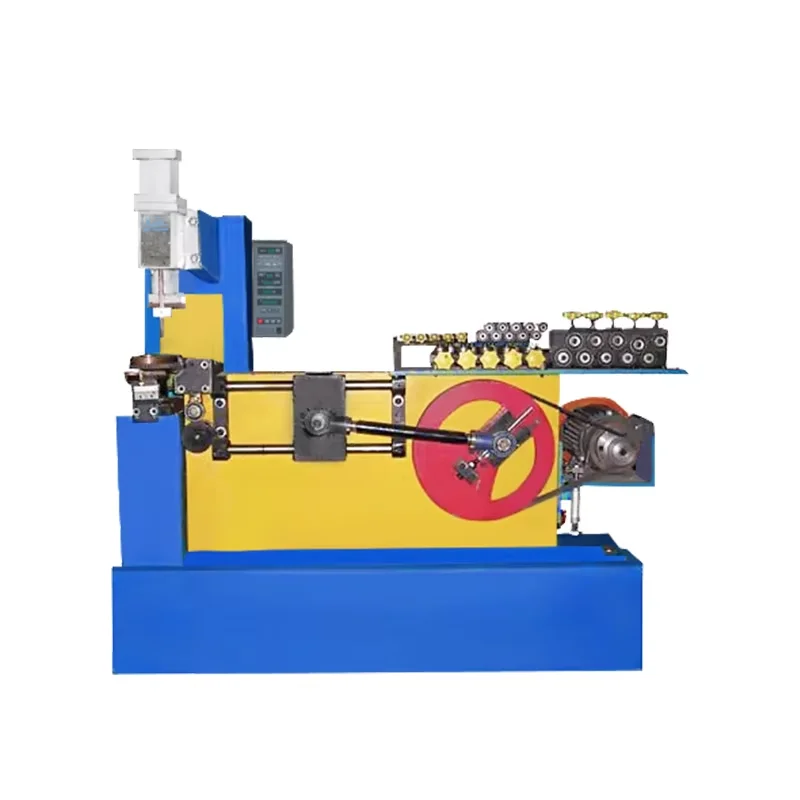

Automatic Wire Ring Making and Butt Welding Machine

The equipment specializes in automatic production of iron ring. When the iron wire enters the hole position set by the equipment, start the equipment automatically by setting the perimeter value, quantity and line speed according to the specification.

Sample effect of ring machine

Automatic spot welder for inner ring

After the inner-ring is welded and formed by hydraulic press, put them into the mould on this outer ring welding machine, distribute those 120 wires evenly, start the machine and the outer ring can be welded. Different size of guard needs different welding mould. There are two mould holders. During one is welding, another can be prepared

Welding Heads

Suitable wire diameter of the outer ring: 3-4mm

Rated welding power: 40KVA

Size of guard: 8”-20”

Productivity: 1000-1500 pieces (16”, 120 pieces radial wires)

Air consumption: 0.4M3/min

Welding current: 10A per time

Dimension: 1200 x 950 x 1550mm

Weight: about 500kg

Automatic Outer Ring Welding Machine

After the inner-ring is welded and formed by hydraulic press, put them into the mould on this outer ring welding machine, distribute those 120 wires evenly, start the machine and the outer ring can be welded. Different size of guard needs different welding mould. There are two mould holders. During one is welding, another can be prepared.

Welding Heads

Suitable wire diameter of the outer ring: 3-4mm Rated welding power: 40KVA Size of guard: 8”-20” Productivity: 1000-1500 pieces (16”, 120 pieces radial wires) Air consumption: 0.4M3/min Welding current: 10A per time Dimension: 1200 x 950 x 1550mm Weight: about 500k

Automatic Middle Ring Welding Machine

This machine is used for welding the middle ring of the fan guard.

Welding Heads

25T Hydraulic Press Machine

This equipment is used for hydraulic forming of inner ring of fan guard.

Hydraulic forming molds

Hydraulic rolling and cutting, quick and accurate (length tolerance less than 1%). Suitable diameter: 1.0-6.0mm Suitable ring diameter: 60-600mm Main driving power: 1.5kW Linear wire feeding speed: about 30m/min Productivity: 8000-10000 pieces per 8 hours shift Dimension: 1350 x 700 x 1450mm Weight: about 350kg

Edge Trimming Machine

This equipment is used for trimming of fan guard with fast cutting speed, and smooth surface.

The effect after trimming is flat
