HWASHI Standing Roof Seam Welding Machine Seam Welder Top Roofing Welder

  • 1
  • 2

Brand Name : HWASHI

Model Number : WL-FS-75k

Certification : CE/CCC\ISO

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

Contact Now

Hwashi Best Price Three-phase Standing Roof Seam Welding Machine Seam Welder

HWASHI Standing Roof Seam Welding Machine Seam Welder Top Roofing Welder
Product description

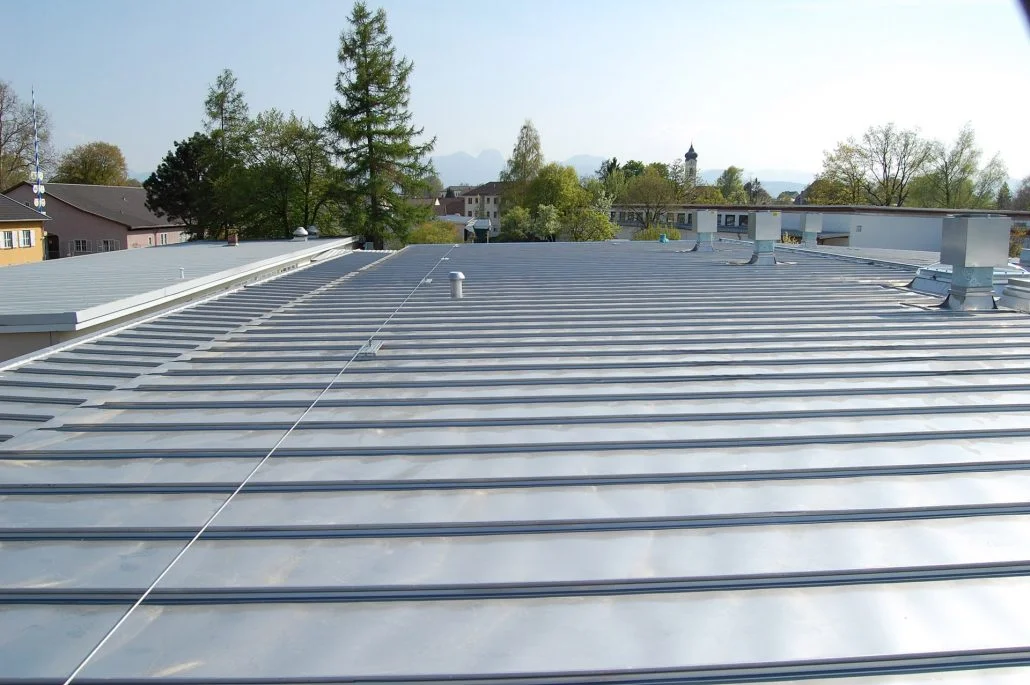

Standing Roof Seam Welding Machine can be apply to stainless steel and titanium based material. The excellent corrosion resistance performance suit for harsh environments long service life and environmental pollution. The automatic roof welding system simplify the process for seams connections. The entire roof will be covered by the seamless metal roofing. Less concern on water penetration and air leakage. Extreme performance under strong wind and uplift resistance.
HWASHI Standing Roof Seam Welding Machine Seam Welder Top Roofing Welder

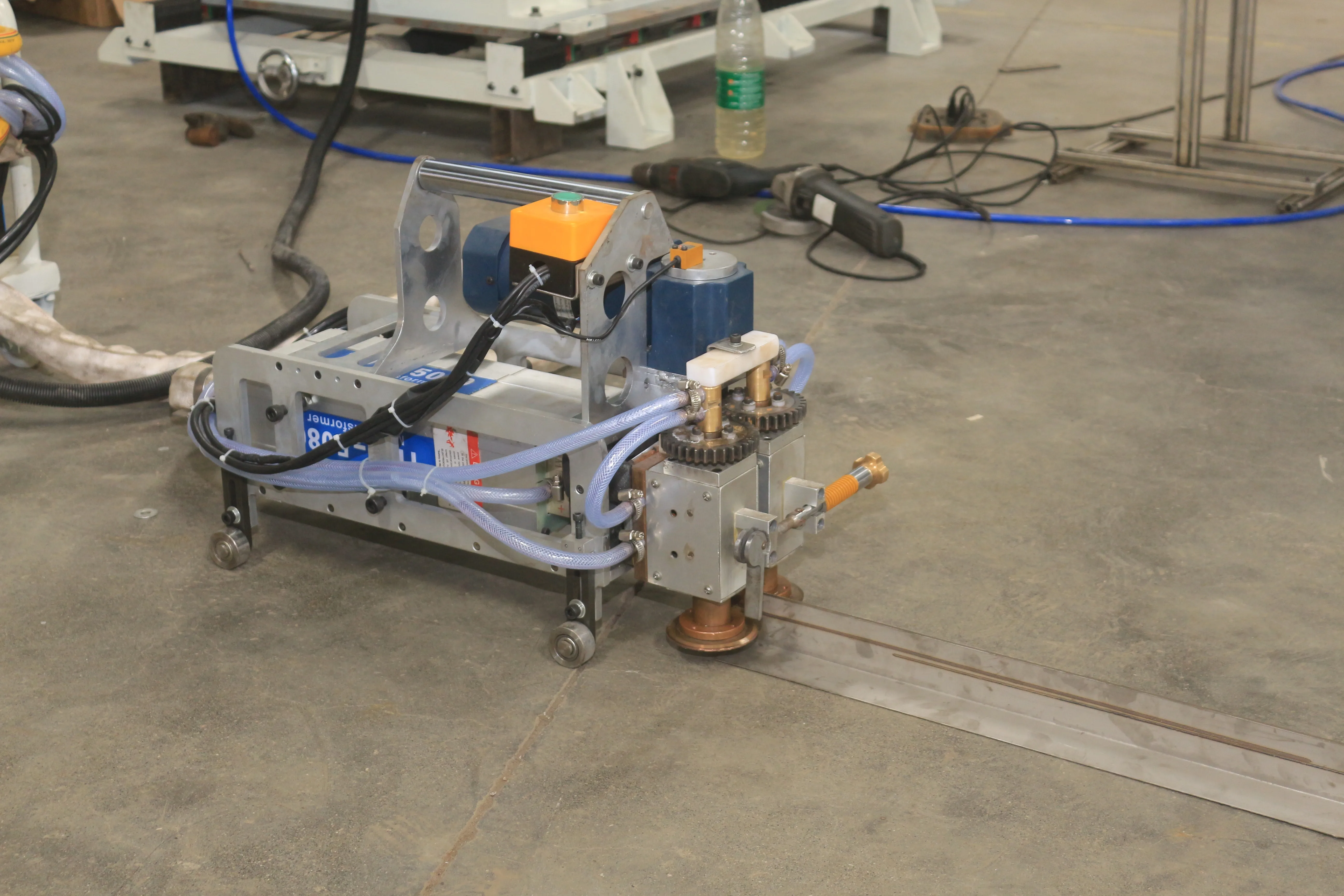

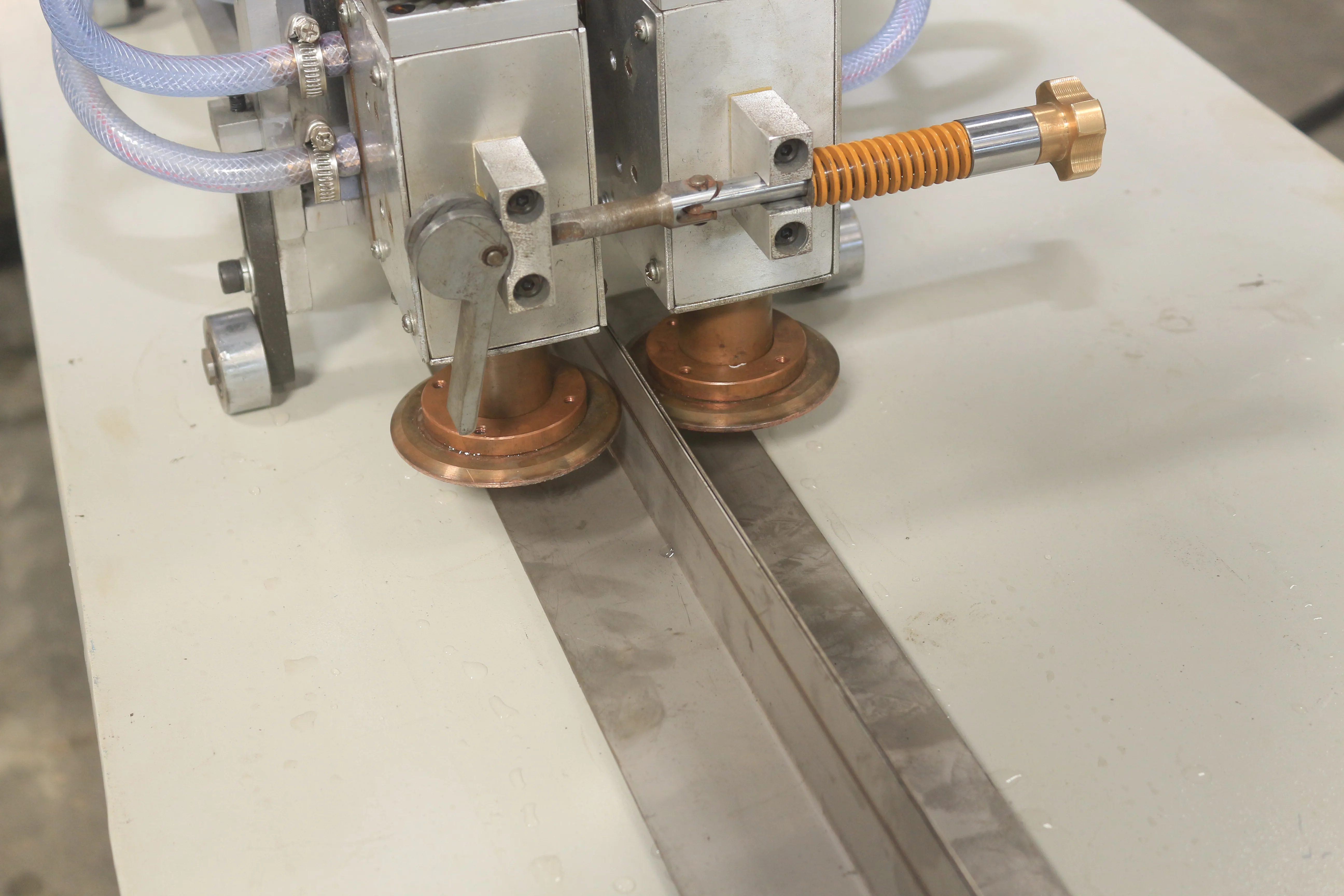

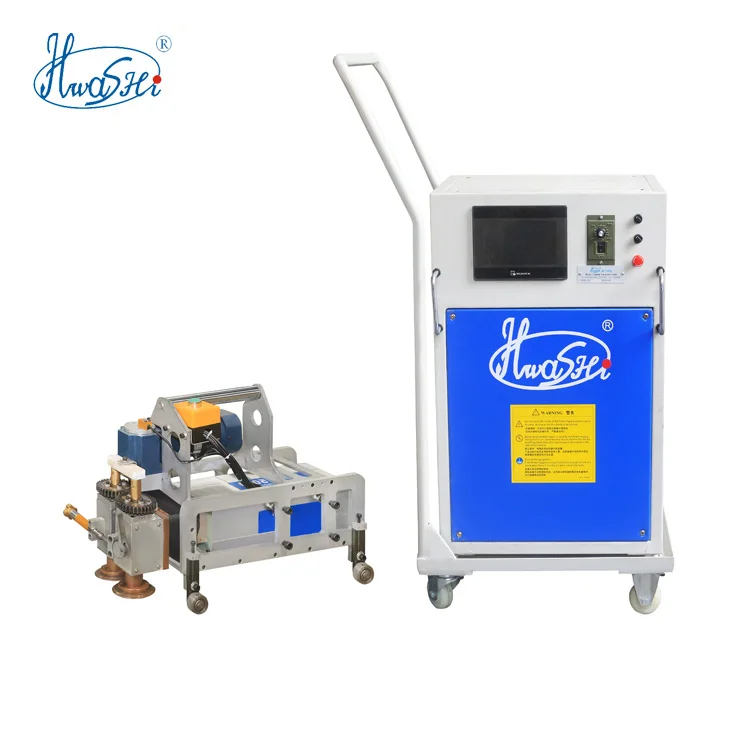

This seam welding equipment is special for stainless steel roof welding.Transformer, controller, welding mechanism and cooling mechanism are put on the four-wheel trolley, which can be pushed to move freely manually. When welding, the motor drives the roller wheel to drive the trolley to move and weld in a straight line. Welding pressure uses spring pressure, no pneumatic component structure; Welding mode can be switched to two welding modes: seam welding or spot welding in the welding system. The design selects the MF inverter dc welding system as the welding source. The transformer is small in size, the equipment is lighter in weight, and it is easy to move. One person can independently complete the operation and use of the equipment.
In order to meet the needs of welding, the equipment can meet the welding conversion of two and three layers of materials, the thickness of which is 0.6+0.5+0.6mm.
HWASHI Standing Roof Seam Welding Machine Seam Welder Top Roofing WelderHWASHI Standing Roof Seam Welding Machine Seam Welder Top Roofing WelderHWASHI Standing Roof Seam Welding Machine Seam Welder Top Roofing Welder
working process
Manually push the equipment to the welding position - raise the wheels of the car - adjust the rolling pressure according to the spring force conditions - start welding - the car automatically move welding - welding complete - release the spring boost - move to the next welding position - the equipment cycle production
Standing Roof Seam Welding Machine
No.
Items
WL-FS-MF160K
1
Input Power
Three-Phase 380V±10%

2

Rated Capacity
20KVA
3
Rated Duty Cycle Rate
50%
4
Max. Secondary Short Circuit Current
6000A
5
Max. Welding Pressure
150kg
6
Welding Electrode Diameter
80mm
7
Welding Machine Size
900mmx300mm 40kg
8
Controller and Water Cooling System Size
1000mmX500mm 60kg
Application and samples
HWASHI Standing Roof Seam Welding Machine Seam Welder Top Roofing Welder
