CNC X Y Axis Square Tank Cover Seam Welding Machine Automatic Seam Welder

Brand Name : HWASHI

Model Number : WL-FS-200K

Certification : CE/CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Supply Ability : 50 sets per month

Delivery Time : 7-30 working days after received your payment

Packaging Details : sea worthy wooden package

Product Name : Stainless Steel Flange Automatic Resistance Seam Welding Machine

Application : Square Tank Cover Seam Welding

Condition : New

Warranty : One Year

Standard : CE/CCC/ISO

Service Life : 8-10 years

Core Components : Core Components:

Contact Now

HWASHI CNC X, Y Axis Square Tank Cover Seam Welding Machine Automatic Seam Welder for Square Tank Cove

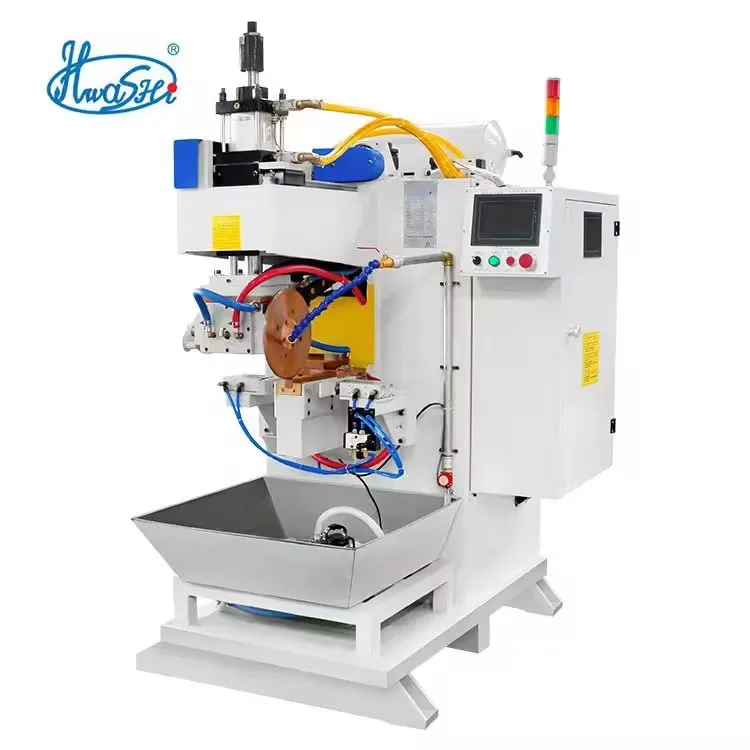

CNC X Y Axis Square Tank Cover Seam Welding Machine Automatic Seam Welder

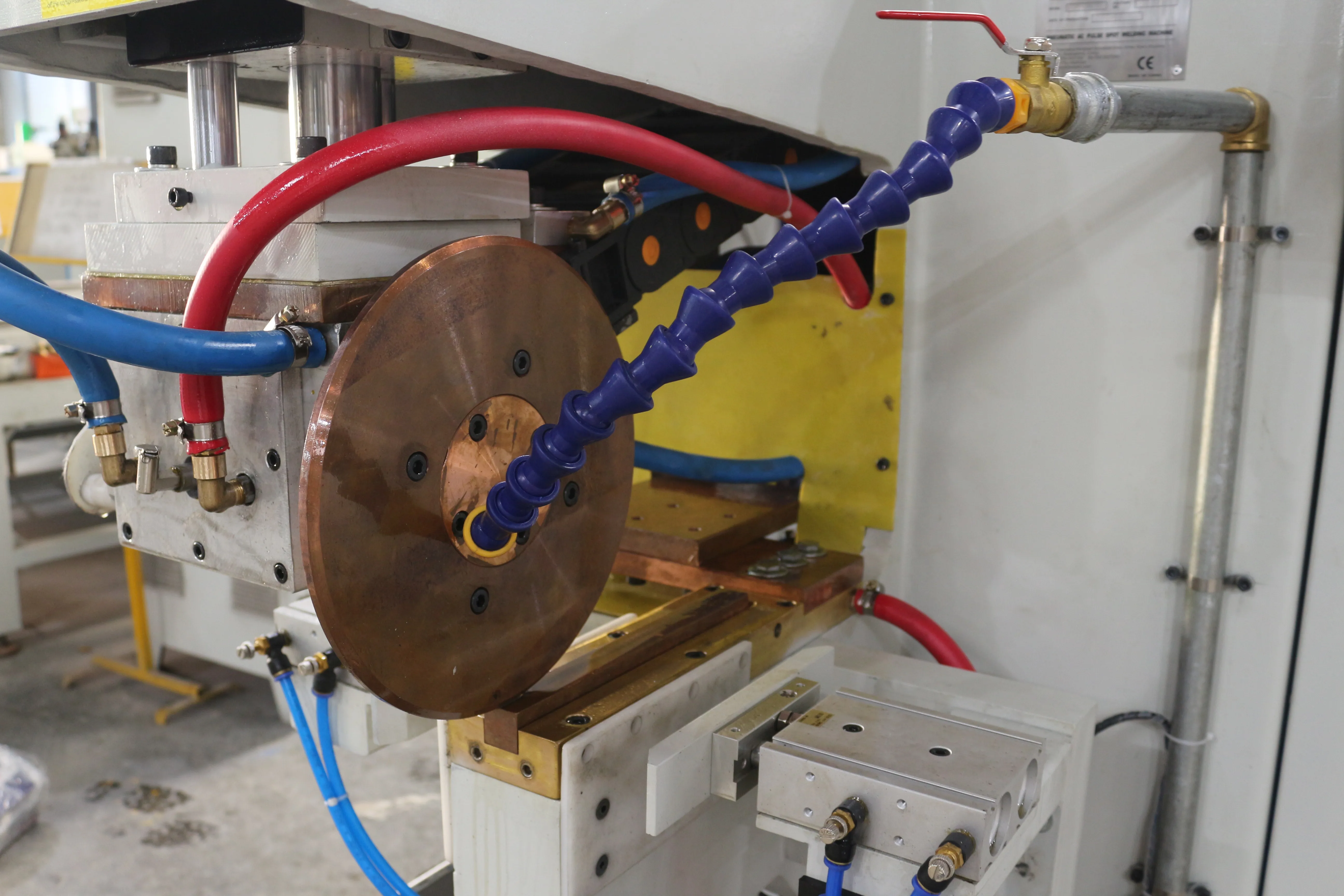

CNC X, Y Axis Square Tank Cover Seam Welding Machine utilizes the seam welding principle to replace the spot welding electrode with circle welding wheel. Adopt the rotation table for work piece, as long as inputting the data like coordinate data of the position of welding products, welding current, etc., then after turning on the machine, the welding track will automatically finish welding product within the preset procedure. The workers only need to put the work piece onto certain place and then take it away when finishing welding.
Adopt AC power source of welding and large flat platform of lower electrode. Use the servo motor to drive X axis and Y axis to operate under the preset program. It could store 16 sets of welding models at most. According to the stored position of welding seam, the welding product will move horizontally along the X direction and the moving area should be no more than 500mm. The welding electrode will be designed to move vertically along the Y direction and the moving area should be no more than 300mm.
Suitable for welding the tank within the range of 500x300mm. Welding material thickness is 0.5-1.5mm.
Total welding thickness is 1-3mm.
CNC X Y Axis Square Tank Cover Seam Welding Machine Automatic Seam Welder
Specification
Model
WL-FS-75K
WL-FS-100
WL-FS-125
WL-FS-160
WL-FS-200
WL-FS-250
Rated Capacity KVA
75
100
125
160
200
250
Voltage V
380*2
380*2
380*2
380*2
380*2
380*2
Duty Cycle Rate%
50
50
50
50
50
50
No Load Voltage V
1.08-7.02
1.12-7.38
1.26-8
1.3-8.5
2.2-9.0
1.3-9.7
Max. Welding Thickness mm
1.2+1.2
1.5+1.5
1.8+1.8
2+2
2.5+2.5
2.5+3
Upper Wheel Stroke mm
20-80
20-80
30-100
30-100
30-100
30-100
Welding Speed m/min
0.6-4
0.5-3.2
0.5-2.8
0.5-1.5
0.5-1.2
0.5-1.2
Max. Pressure KN
6.3
6.3
8.6
8.6
8.6
8.6
Compressed Air Mpa
0.5
0.5
0.6
0.6
0.6
0.6
Cooling Water Consumption L/h
820
960
1080
1080
1080
1080

Application and samples
Product Application
Suitable for welding the tank within the range of 500x300mm. Welding material thickness is 0.5-1.5mm. Total welding thickness is 1-3mm.
CNC X Y Axis Square Tank Cover Seam Welding Machine Automatic Seam Welder
CNC X Y Axis Square Tank Cover Seam Welding Machine Automatic Seam Welder
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.
CNC X Y Axis Square Tank Cover Seam Welding Machine Automatic Seam Welder
CNC X Y Axis Square Tank Cover Seam Welding Machine Automatic Seam Welder
Application Industry of The Seam Welding Machine

Suitable for the welding of sheet, barrel body, box and sealed thin-wall container with different material, such as carbon steel, stainless steel, titanium, nickel and other materials. For fuel tank of automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.
